System DesignBlockchainSaaS


Posted on Sept 15. 2023

In 2021, I embarked on an Ethereum mining venture using my cryptocurrency mining rig comprising of 6 RTX 3080s, through a cryptocurrency mining pool known as Flexpool.io. During this period, I fostered connections with several individuals in Flexpool's Discord community who were keen on mining an emerging alt-coin named Ergo. However, we were confronted with a significant obstacle: the absence of established software to kickstart Ergo mining. Read further to learn about my journey of creating this service from scratch, it eventually led to a job at Flexpool.io! Which was one of the biggest Ethereum mining pools in the world.

Due to my employment at Flexpool.io, I shut EnigmaPool down.

Embarking on the Journey of Developing a Cryptocurrency Mining Pool from Scratch

There was no existing guide/material on starting a cryptocurrency mining pool. One of the biggest names in the industry told me:

This is equivalent to starting a bank or a telecommunication company, etc. No guides whatsoever

The initial phase necessitated the development of a foundational component - a stratum server. This server acts as the central hub, facilitating direct communication with the GPUs while validating the results of their computation. Additionally, it handles the distribution of tasks to the miners, while monitoring their contribution compared to everyone else.

To appreciate the intricacies involved, let's first delve into the mechanics of cryptocurrency mining. Essentially, miners are responsible for generating new blocks in a blockchain, which is contingent upon identifying a valid key - a process characterized by trial and error involving multiple keys. This task is well-suited for GPUs given their proficiency in executing parallelized tasks at an astonishing speed, significantly outpacing CPUs in generating millions of hash attempts per second.

These sought-after keys, referred to as nonces (numbers utilized once), are dispensed to GPUs within a work package containing a specific nonce range to explore. A nonce is valid when it identifies a key that results in a hash with a numerical value sufficient to create a new block. This threshold is termed as the difficulty, which undergoes periodic adjustments by the network to maintain a steady block generation pace. The fluctuation in difficulty levels, dictated by the recent block discovery rate, either expands or contracts the search space for valid keys, thereby achieving a targeted block discovery frequency. This allows the network to adjust for new miners or technological advancements bringing leaps in compute capacity.

How Stratum Server Works:

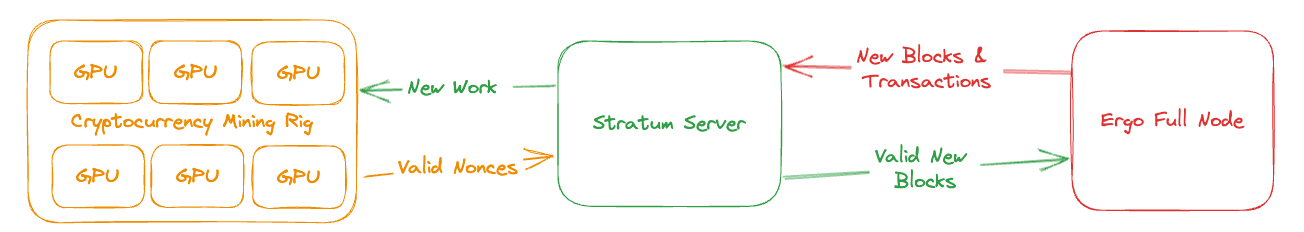

stratum server communication breakdown

Cryptocurrency Mining Rig ↔ Stratum Server

  • New Work: With every notification of a new block from the Ergo Full Node, the stratum server crafts a fresh work package for the miner. This package, created through the precomputation of several values using block information, is then transmitted to the cryptocurrency mining rig.
  • Valid Nonces: The GPUs undertake the critical role of identifying a valid key capable of generating a hash that meets the numerical threshold necessary for block creation.

Ergo Full Node ↔ Stratum Server

  • New Blocks & Transactions: Serving as our lifeline to the Ergo blockchain, the Ergo Full Node updates the stratum server regarding the inception of new blocks and transactions within the blockchain. A new work package is generated if a new block is discovered, or if a transaction is added to the mempool.

  • Valid New Blocks: The Ergo Full Node is polled periodically, and any new blocks are broadcast as work packages to all connected miners.

Creating The Stratum Server

The stratum server is responsible for communication between the GPUs and the Ergo blockchain. It handles the responsibility of dispersing work packages to the GPUs, in addition to validating the submissions returned by the GPUs. It is the first step to creating a mining pool.

Deciphering the Stratum Protocol

Unfortunately, there is no official documentation highlighting the nuances of the Ergo stratum protocol. This resulted in me to undergoing the meticulous task of reverse-engineering the protocol. Leveraging the capabilities of WireShark, I scrutinized the TCP communication dump between a miner and an existing pool, capturing data that would guide my development process. The stratum protocol operates on a JSON-RPC foundation, adhering to a request-response communication pattern.

This phase of the project presented a considerable challenge - the data extracted was devoid of labels, leaving me to decipher the significance of each field in the work package dispatched to my GPU. Furthermore, I had to figure out how to calculate these data points, which is a bit complex when you have barely any idea on how blockchain mining concepts work.

Once I had a grasp of the protocol, I began the development of the stratum server. I utilized TypeScript for this project, which probably wasn't the best choice, but was the language I was most comfortable with at the time. The stratum server was designed to be modular, allowing for the addition of new algorithms and cryptocurrencies with minimal effort. This was achieved through the creation of a generic stratum server that could be extended to support any algorithm by using generics.

The lifecycle of a stratum server & miner is as follows:

  • Miner connects to the stratum server:
    • The miner sends a mining.subscribe request to the stratum server, which responds with a mining.notify response containing the initial work package.
    • The miner sends a mining.authorize request to the stratum server, which responds and acknowledges the authorization and validity of the address.
  • Miner begins mining:
    • The miner sends a mining.submit request to the stratum server, which responds and notifies the miner of the validity of the submission.
    • If the miner submits a nonce that is a valid block, the stratum server sends a mining.notify response to the miner, containing a new work package for the next block. It also notifies all of the other miners connected to the stratum server of the new block.

Communication between the Stratum Server and the Ergo Full Node

The stratum server communicates with the Ergo Full Node through the Ergo Node REST API. The stratum server utilizes the Ergo Node API to retrieve the latest block information, as well as to broadcast newly discovered blocks to the Ergo Full Node. Since the API has no subsciption mechanism, the stratum server polls the API at a regular interval to check for new blocks mined by other people. If a new block is found, the stratum server computes a new work package and broadcasts the work to all of the miners connected to the stratum server.

Calculating Miner Rewards

You might be wondering how the stratum server can calculate how much each miner should be paid each time a block is found. This is a tricky problem, since finding blocks is an extremely rare event, which is why most people mine on a pool. You cannot simply divide the block reward by the number of miners, since miners can join and leave at any time. Miners can also have varying amounts of computational power. The solution to this problem is to use a concept known as shares.

A share is a valid nonce that isn't quite a block, but is still pretty close. The stratum server informs the miner of the current pool difficulty, which is different from a network difficulty. The pool difficulty is generally much easier to meet versus the network difficulty. So if a miner finds a nonce that is valid for the pool difficulty, it just sends it to the stratum server. The stratum server runs the same nonce through the hashing algorithm to verify the validity. If the result meets the pool difficulty, the miner is rewarded with a share. The miner is then paid a fraction of the block reward based on the number of shares they have submitted. This is known as a pay-per-share (PPS) system. This is a very fair system because the miner is paid for the work they have done, regardless of whether or not they find a block. It also pays miners fairly based on their computational power, since miners with more computational power will find more shares.

After all of this was implemented, I had a working stratum server! I was able to connect my GPUs to the stratum server and start mining Ergo. However, there was still one problem - I was the only one mining on my stratum server. I needed to create a website to allow other people to connect to my stratum server and start mining. I also needed accounting software to handle paying rewards, collection statistics, and then expose data through an API. Then I needed a website to expose all of this data.

Everything Else

Following the establishment of the stratum server, my focus shifted towards the creation and integration of the remaining components necessary to launch a fully functional mining pool. This comprehensive development involved crafting a website, setting up cron jobs, and establishing a robust backend API.

I opted to utilize React to build the website, and utilized Express.js to build the backend API. I used MongoDB for my database. Also, I leveraged Docker to containerize all services. For redundancy, I incorporated BullMQ to function as a share cache.

I built the website using NextJS and deployed it on Vercel. Which automatically deploys my code, and uses edge-cdns to ensure my website is located close to all possible users.

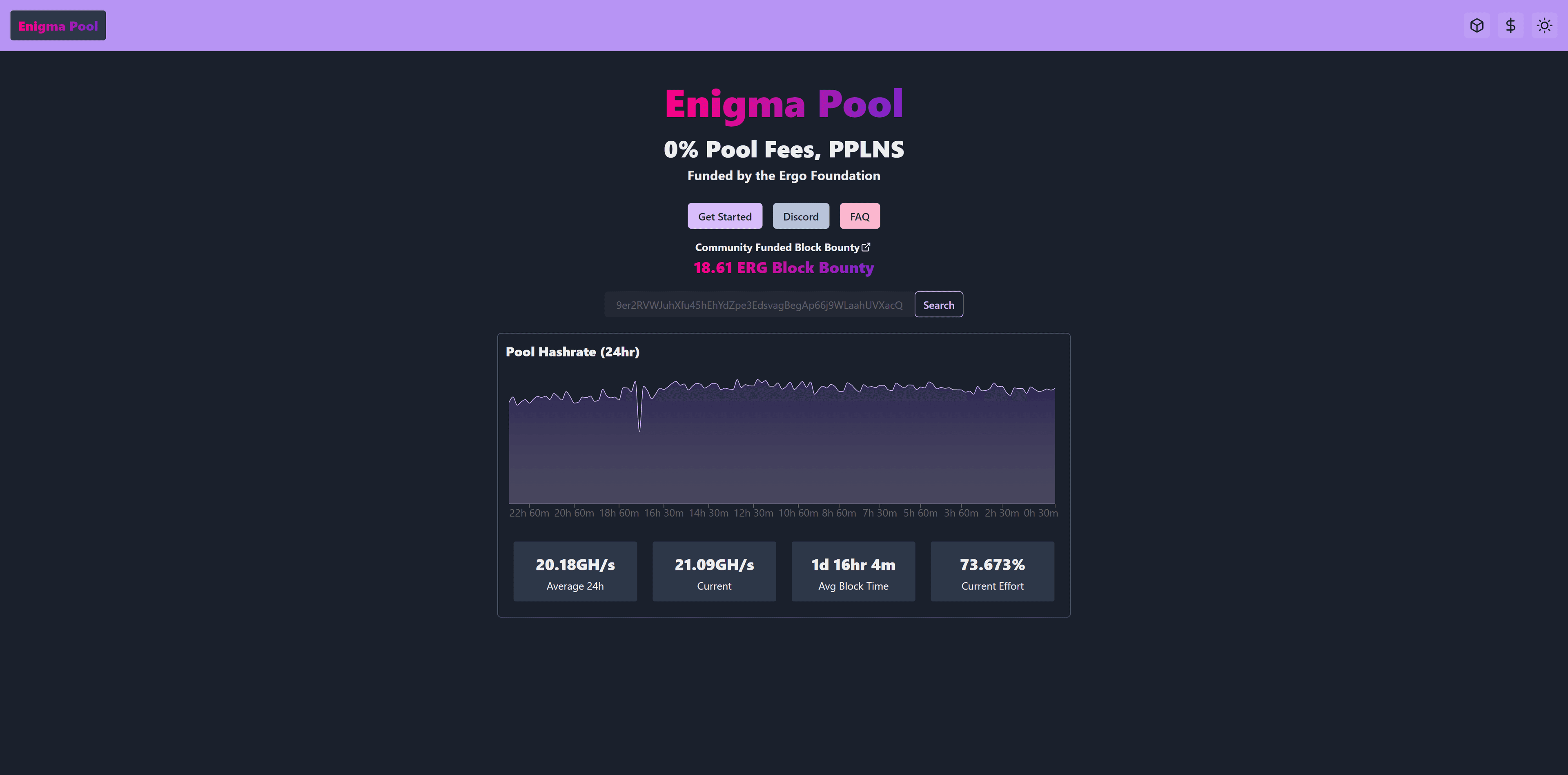

enigmapool website screenshot

An Insight into the Architecture

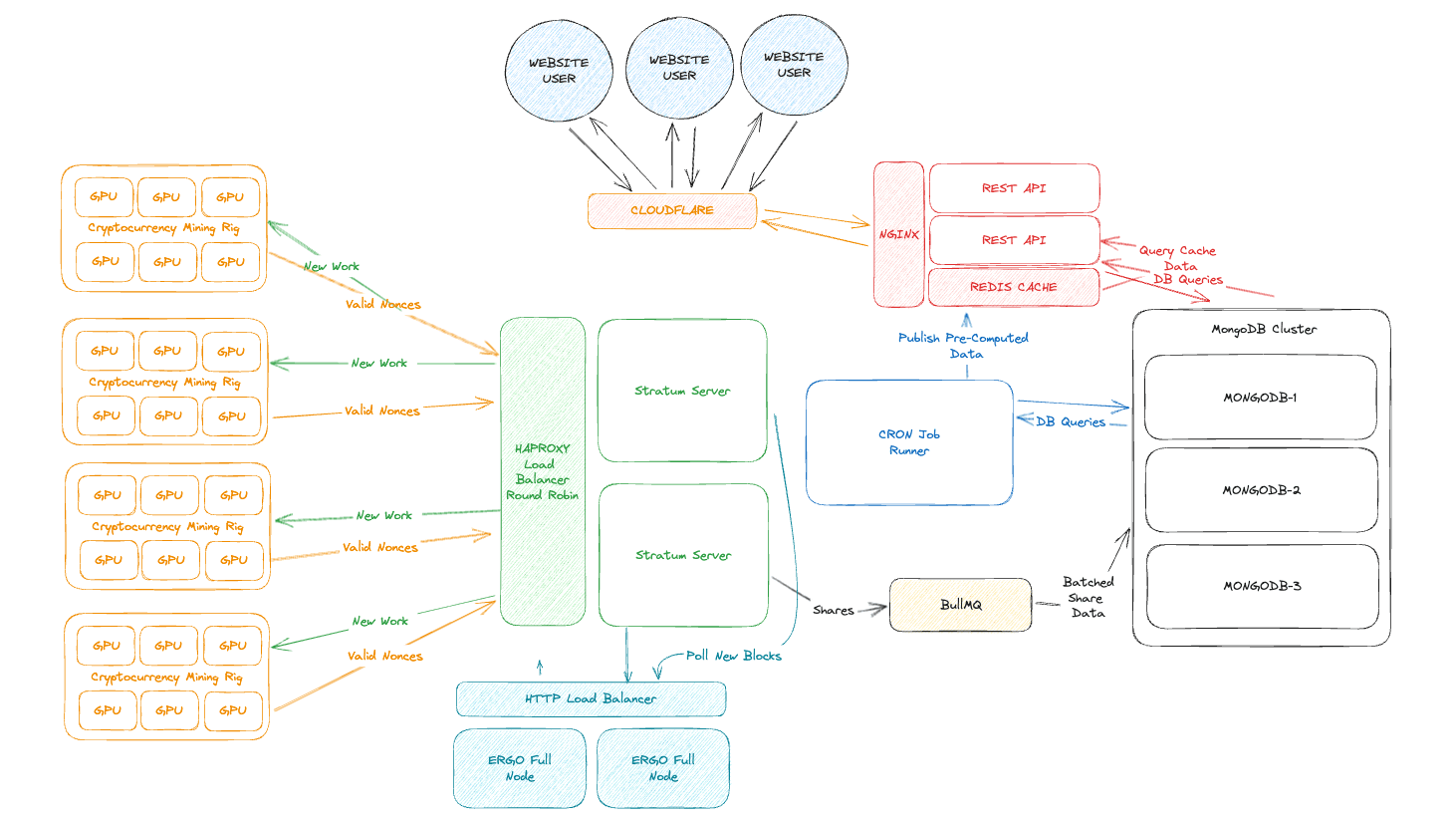

architecture breakdown
  • HAProxy & Stratum Servers: Functioning as the stratum servers' load balancer, the HAProxy facilitates the efficient distribution of traffic, adopting a round-robin approach to channel connections to various stratum servers. It also manages SSL termination - a optional feature in bidirectional TCP sockets of the stratum protocol. Since SSL not required for getting from HAProxy to Stratum Server, it is terminated at the load balancer level. Additionally, the presence of multiple stratum servers not only distributes user load evenly but serves as a redundancy measure, ensuring continuity in the event of a server malfunction.

  • BullMQ: As a message queue software, BullMQ operates as a middle layer, scheduling periodic share submissions to MongoDB, thereby preventing individual write request overloads - which wouldn't work well on MongoDB. This allows for batch writing and the ability to retry failed attempts, safeguarding against potential data loss during MongoDB downtimes. This feature is crucial to preventing share losses, ensuring users receive their due payments. Furthermore, BullMQ backs up the queue on the disk, preventing data loss even in case of crashes.

  • HTTP Load Balancer & Ergo Full Nodes: This component maintains the health of the network by monitoring the sync status of the Ergo Full Nodes with the broader blockchain network. In instances where a node exhibits sync issues or a complete breakdown, the load balancer intervenes, halting traffic flow to the affected node until normalcy is restored, ensuring the integrity and smooth operation of the service.

  • REST API & NGINX & Redis Cache: This segment of the architecture unveils the data housed in MongoDB along with precomputed data stored in Redis through the REST API. The Cron Job Runner engages in periodic task execution, utilizing complex MongoDB Aggregation Pipelines to process and relay data to Redis. In this setup, NGINX assumes the role of managing SSL termination from Cloudflare while overseeing the load balancing between the REST API servers.

  • CloudFlare: As a prominent CDN, CloudFlare extends a protective layer against DDoS attacks while facilitating caching and SSL termination. Its integration into the system is pivotal in safeguarding the website and API from potential DDoS attacks, additionally it lowers the API server load through caching.
